The Electric Submersible Pump, abbreviated as ESP, is a full-set downhole artificial lifting system manufactured in accordance with API RP 11S2 standards, widely deployed for onshore deep oil wells, offshore platform production wells, horizontal deviated wells and geothermal water injection operations. As mainstream high-flow crude oil extraction equipment, the whole assembly is placed inside production Tubing and fully submerged in well fluids. Driven by a hermetically sealed submersible motor, multi-stage centrifugal pump components continuously lift crude oil, formation water and gas-liquid mixtures from deep underground to surface gathering pipelines. Distinct from conventional Beam Pumping Units, ESP requires minimal ground space, delivers stable large-volume flow and supports intelligent variable-speed regulation, making it the optimal lifting solution for high-yield reservoirs and wells with high water cut.

A complete ESP system contains two core modules: downhole assembly and surface control equipment. The downhole string is arranged sequentially from bottom to top: submersible motor, pressure-balancing protector, gas-liquid separator, multi-stage centrifugal pump, check valve and downhole temperature & pressure monitoring sensor. Armored flat power cables run along tubing to transmit three-phase power from ground variable speed drive cabinets to the motor, while built-in sensors feed real-time downhole operating data back to control terminals for automatic monitoring and production adjustment. The multi-stage pump features stacked impellers and diffusers; optional wide-channel wear-resistant impellers effectively adapt to sand-laden, high-viscosity and high gas fraction well fluids. The protector forms a reliable isolation barrier for the motor cavity, balances internal and external pressure and blocks corrosive well fluid infiltration, greatly extending service life under extreme working conditions including high temperature, hydrogen sulfide and carbon dioxide corrosion.

This ESP series supports vertical, inclined and horizontal wellbore installation. Flow rate and lifting head can be flexibly matched based on reservoir productivity. Variable frequency control adjusts operating speed in real time to match dynamic formation output changes, eliminating idle operation and energy waste. Characterized by low running noise, high automation and simple routine maintenance, ESP effectively boosts oil recovery efficiency and cuts long-term comprehensive oilfield operating costs, serving as standard supporting equipment for modern onshore and offshore oil & gas development projects.

Sanmen Machinery Co., Ltd. is a professional manufacturer and global exporter specializing in oilfield artificial lifting equipment, with over 18 years of experience in independent R&D, precision forging and full-set matching production of ESP systems, supporting spare parts and surface control equipment. The enterprise provides one-stop integrated artificial lifting system solutions for global onshore and offshore oil & gas exploration, development and production projects.

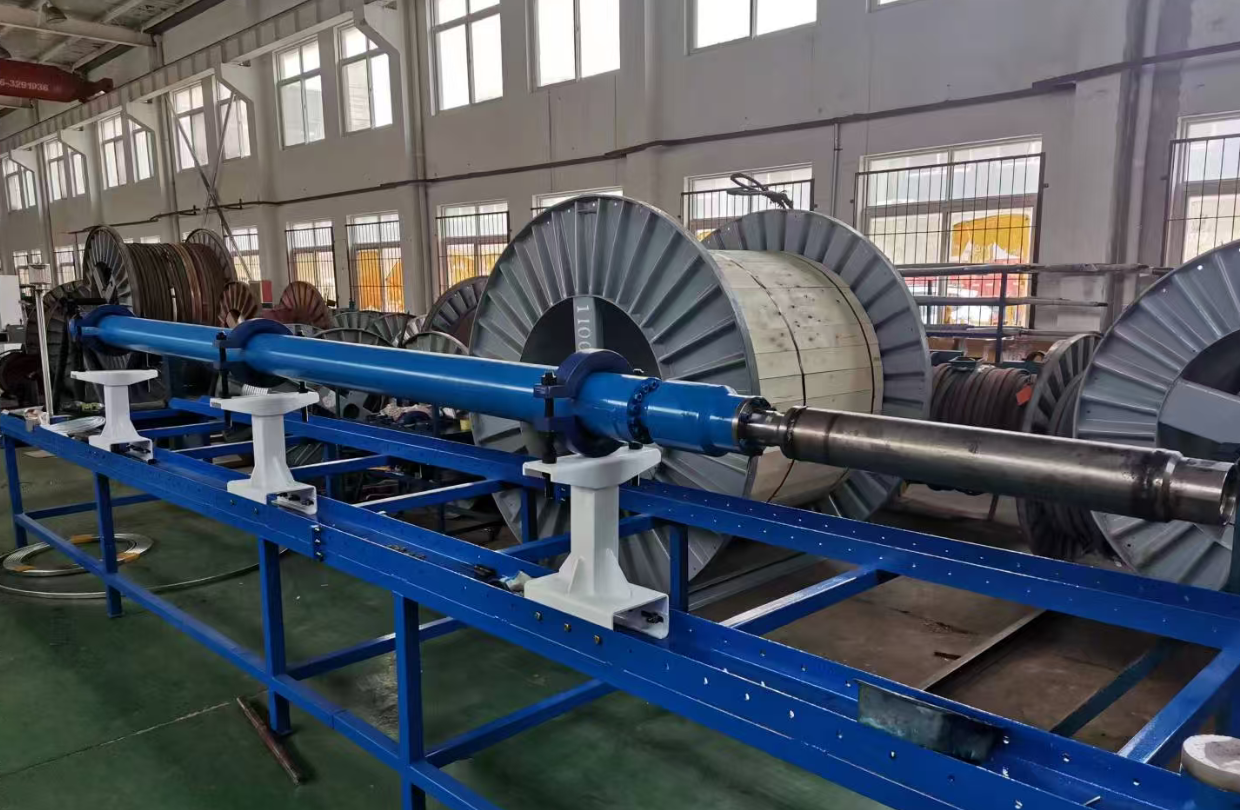

The factory owns standardized heavy-duty intelligent production workshops and dedicated high-pressure simulation test laboratories, equipped with large CNC machining centers, automatic heat treatment lines and full-string running test devices. All core ESP components undergo strict raw material inspection, heat treatment reinforcement, non-destructive flaw detection, hydraulic tightness testing and full-string simulated downhole operation testing before delivery. We strictly comply with international API oilfield standards. Our professional R&D team optimizes impeller hydraulic structures, high-temperature insulation formulas and anti-corrosion configurations according to varying well depths, media and temperatures, resolving equipment failures triggered by sand abrasion, high temperature and corrosive gas in complex oilfield environments.

We adopt a direct factory sales model to remove intermediate profit margins, supplying cost-effective standard and customized ESP packages to more than 30 countries and regions across the Middle East, Southeast Asia, Africa and Latin America. We deliver full-lifecycle services covering well condition parameter evaluation, system scheme optimization, factory pre-assembly testing, on-site installation guidance, operation training and after-sales spare parts supply, helping global oilfield operators streamline production management, raise single-well output and lower overall project investment costs.
