Christmas Trees

    Christmas Trees

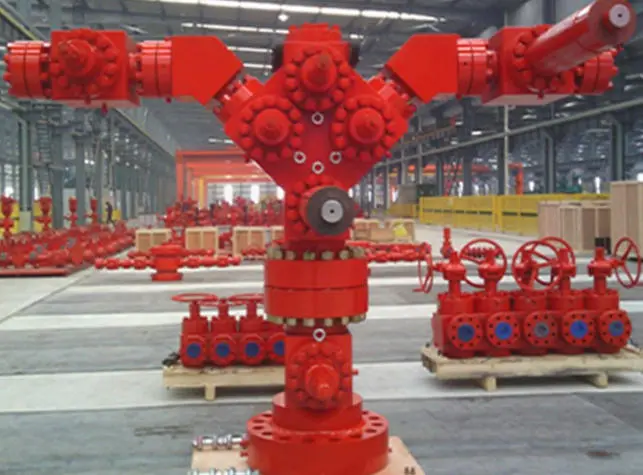

    An oilfield Christmas tree is a core wellhead pressure control equipment installed on the top of casing and tubing strings for onshore and offshore oil and gas wells. It serves as the main safety and production control unit to regulate well flow, control working pressure, isolate downhole fluids, and realize safe production, well shut-in, pressure testing, wax removal, and well maintenance operations. As an essential component of upstream petroleum exploitation, the Christmas tree connects tubing heads, casing heads, gate valves, chokes, check valves, pressure gauges and auxiliary fittings to...
  • Share：
    • Contact us Inquiry
  • E-mail：candice@cnsanmon.com

1. Product Overview

An oilfield Christmas tree is a core wellhead pressure control equipment installed on the top of casing and Tubing strings for onshore and offshore oil and gas wells. It serves as the main safety and production control unit to regulate well flow, control working pressure, isolate downhole fluids, and realize safe production, well shut-in, pressure testing, wax removal, and well maintenance operations. As an essential component of upstream petroleum exploitation, the Christmas tree connects Tubing Heads, Casing Heads, Gate Valves, chokes, check valves, pressure gauges and auxiliary fittings to form a complete wellhead control system.
Our Christmas tree products are strictly designed and manufactured in accordance with API 6A international standards, covering conventional oil wells, gas wells, high-pressure deep wells, and corrosive reservoir working conditions. The whole set adopts integral forging structure with high-strength alloy steel, featuring high pressure resistance, good sealing performance, fatigue resistance and long service life. All flow passages are precisely processed to ensure smooth fluid circulation and reduce erosion and turbulence. The valve body undergoes integral heat treatment to achieve stable mechanical properties under high pressure and high temperature downhole environments.
The Christmas tree can realize multi-functional wellhead management, including production adjustment, emergency shutdown, well pressure monitoring, chemical injection, and well testing. It effectively prevents well blowout, fluid leakage and pressure fluctuation, ensuring maximum safety during oilfield operation. Suitable for onshore oilfields, offshore platform wells, marginal wells and heavy oil wells, our wellhead trees support long-term continuous production and frequent switch operation. With modular structural design, the equipment is easy to install, disassemble, maintain and replace accessories, greatly reducing on-site construction time and operation costs for oilfield enterprises.

2. Technical Specifications

Parameter Item
Technical Data
Product Standard
API 6A, ISO 9001, CE Certified
Working Pressure Grade
2000PSI ~ 15000PSI (14MPa ~ 105MPa)
Working Temperature Grade
LU, PU, TU, SU (-46℃ ~ +121℃)
Material Grade
AA, BB, CC, DD High-strength alloy steel
Sealing Structure
Metal hard seal + elastic composite seal, zero leakage
Connection Type
Flange connection / Thread connection
Applicable Well Type
Oil well, gas well, water injection well, offshore well
Structure Type
Vertical / Horizontal / Subsea type optional
Surface Treatment
Anti-corrosion spraying, rust-proof passivation

3. Company Introduction

Sanmen Machinery Co., Ltd. is a professional manufacturer and exporter of full-series oil and gas field equipment, integrating independent R&D, customized design, precision manufacturing and global sales. Located in Yantai, Shandong Province, China, the company has more than 18 years of experience in petroleum machinery production and foreign trade service. Our main product lines cover wellhead Christmas trees, casing and tubing heads, BOP stacks, Cementing Equipment, completion and stimulation tools, workover fishing tools, sealing parts and oilfield chemical reagents, providing one-stop solution services for global oilfield projects.
The company owns standardized intelligent manufacturing workshops, advanced CNC machining equipment, high-pressure testing laboratories and non-destructive detection systems. All Christmas tree products adopt integral forging process, strict raw material inspection, dimensional precision testing, hydraulic pressure test and NDT flaw detection before delivery. We implement full-process quality control in accordance with API and international industrial standards to ensure stable performance, high safety factor and long service life of each wellhead equipment set.
Adhering to factory direct sales mode, we provide customized design according to different well pressure, temperature, medium corrosion and customer special requirements. Our products have been exported to more than 30 countries and regions in the Middle East, Southeast Asia, Africa and South America. With professional technical support, stable delivery cycle and complete after-sales service system, we have established long-term and stable cooperative relationships with global oilfield operators and engineering contractors.


FAQ

Q1: What is the function of a wellhead Christmas tree?

A1: The Christmas tree is the key wellhead safety and production control device. It is mainly used to control oil and gas output, adjust production flow, monitor well pressure, safely shut down wells, conduct well testing and chemical injection, and prevent blowout and leakage risks during oilfield operation.

Q2: Can you provide customized Christmas trees?

A2: Yes. We support personalized customization of pressure grade, temperature grade, material, structure form and connection size according to customer well conditions, reservoir medium and project standards, including conventional, high-pressure, corrosion-resistant and offshore dedicated models.

Q3: What certifications do your products have?

A3: All our Christmas trees comply with API 6A standard and have complete factory test reports, pressure test certificates and NDT reports. We can provide CE, ISO and other qualification documents to support global project bidding and customs clearance.

Q4: How about your product quality and service life?

A4: Our wellhead trees adopt high-quality alloy steel integral forging structure with high pressure resistance and corrosion resistance. Strict heat treatment and sealing technology ensure stable long-term operation. The normal service life can reach more than 10 years under standard working conditions.

Q5: What is your delivery time and after-sales service?

A5: Standard models have fast delivery within 15–25 working days. Customized models are delivered according to production schedule. We provide professional installation guidance, operation training and long-term after-sales technical support for global customers.
