H.BPV AND TWCV

H.BPV (Type H Hydraulic Back Pressure Valve) and TWCV (Tubing Wing Check Valve) are essential API 6A certified one-way safety control assemblies specially designed for oil and gas wellhead Christmas tree systems. As core wellhead protection components, they are widely matched with onshore and offshore production trees, well test manifolds and surface safety systems to realize backflow prevention, well pressure locking and passive pressure protection during well operation and maintenance. The combination of H.BPV and TWCV forms a dual one-way sealing barrier, effectively solving fluid backflow,...

Inquiry

E-mail：candice@cnsanmon.com

Detailed Description
Product Encyclopedia

1. Product Description

H.BPV (Type H Hydraulic Back Pressure Valve) and TWCV (Tubing Wing Check Valve) are essential API 6A certified one-way safety control assemblies specially designed for oil and gas wellhead Christmas tree systems. As core wellhead protection components, they are widely matched with onshore and offshore production trees, well test manifolds and surface safety systems to realize backflow prevention, well pressure locking and passive pressure protection during well operation and maintenance. The combination of H.BPV and TWCV forms a dual one-way sealing barrier, effectively solving fluid backflow, pressure reverse impact and wellhead pressure loss problems in conventional wellhead systems, greatly improving the overall safety level of oil and gas well surface control.

The Type H Hydraulic Back Pressure Valve (H.BPV) is a downhole mounted one-way non-return valve installed inside the tubing hanger. It allows downward fluid circulation during well flushing, pressure testing and tool running, but firmly blocks upward backflow of downhole high-pressure fluid. Its biggest advantage is enabling Christmas tree replacement, BOP stack removal and wellhead maintenance without killing the well, which significantly reduces operating costs, shortens construction downtime and avoids formation damage caused by frequent well killing. Adopting integral forging structure and metal hard sealing design, H.BPV maintains stable sealing performance under ultra-high pressure and harsh corrosive working conditions.

The TWCV (Tubing Wing Check Valve) is installed on the tubing wing passage of the production tree, serving as the surface one-way check barrier. It prevents reverse flow of surface pipeline medium and pressure back-impact from the gathering manifold, protecting downhole tubing strings and wellhead equipment from reverse pressure damage. Cooperated with H.BPV, it forms internal and external double-layer anti-backflow protection. Both products adapt to high pressure, low temperature, high salinity and H2S corrosive oilfield environments, featuring zero leakage, strong pressure resistance and long fatigue life. They are standard supporting safety components for standardized well completion, workover and offshore platform production operations.

2. Technical Specifications & Parameters

Parameter Item	Technical Standard
Product Name	H.BPV (Type H Back Pressure Valve) & TWCV (Tubing Wing Check Valve)
Executive Standard	API 6A, ISO 9001
Pressure Grade	2000PSI ~ 20000PSI (14MPa ~ 140MPa)
Size Range	1-13/16” ~ 7-1/16” Customizable
Temperature Class	-46℃ ~ 121℃ (K~U Class)
Product Type	Unidirectional Non-return / Anti-backflow Valve
Main Material	Carbon Steel, Alloy Steel, Anti-sulfur Stainless Steel
Sealing Performance	Bidirectional Zero Leakage, Metal Hard Seal
Core Function	Well Pressure Locking, Backflow Prevention, Reverse Pressure Protection
Application Scene	Wellhead Christmas Tree, Onshore & Offshore Oil & Gas Wells
Certification	CE, ISO, Third-party Marine Inspection Report

3. Company Profile

Sanmen Machinery Co., Ltd. is a professional manufacturer and global exporter of API 6A wellhead safety valve assemblies, focusing on R&D, precision forging processing and batch production of H.BPV, TWCV, surface safety valves, check valves and wellhead matching accessories. With more than 18 years of petroleum machinery manufacturing experience, the company provides complete wellhead safety system solutions for global onshore and offshore oilfield development, well completion and workover projects.

The company is equipped with advanced CNC machining centers, integral forging production lines and professional high-pressure testing laboratories. All H.BPV and TWCV products adopt one-piece forging and heat treatment strengthening technology, with precise sealing surface grinding and 100% full-pressure tightness testing. We strictly implement API 6A international standards, and each batch of products undergoes non-destructive flaw detection, pressure impact test and low-temperature resistance test to ensure stable and reliable performance under ultra-high pressure and corrosive working conditions. The professional technical team supports personalized customization of size, pressure grade and anti-corrosion configuration according to customer well conditions.

Adopting factory direct sales model, we eliminate intermediate profits and provide high-cost-performance wellhead valve assemblies. Our H.BPV and TWCV sets are widely exported to more than 30 countries in the Middle East, Southeast Asia, Africa and Latin America. We provide one-stop services including parameter selection, factory pre-assembly test, on-site installation guidance and full-life after-sales maintenance, helping customers simplify wellhead maintenance procedures, reduce operation risks and save overall project costs.

Frequently Asked Questions (FAQ)

Q1: What is the difference and matching function between H.BPV and TWCV?

A1: H.BPV is installed inside the Tubing hanger for internal well pressure locking, preventing downhole fluid backflow during tree replacement and BOP removal without killing the well. TWCV is installed on the tubing wing to block surface pipeline reverse pressure. The two form internal and external double protection, realizing full-range anti-backflow and well pressure safety locking.

Q2: Can the valve work in H2S corrosive oil wells?

A2: Yes. We provide anti-sulfur alloy material options and professional anti-corrosion treatment. The customized H.BPV and TWCV can adapt to hydrogen sulfide and carbon dioxide corrosive environments, meeting long-term safe operation requirements of high-sulfur oil and gas wells.

Q3: What working pressure grades can be provided?

A3: We support full API pressure grades from 2000PSI to 20000PSI, covering conventional low-pressure wells, high-pressure test wells and ultra-high-pressure offshore platform wells. All specifications comply with international wellhead matching standards.

Q4: What test reports and certifications are available?

A4: All products comply with API 6A and ISO 9001 standards. We can provide material certificates, hydraulic pressure test reports, NDT flaw detection reports and complete export documents to support project acceptance and customs clearance.

Q5: What is your delivery cycle and after-sales service?

A5: Standard specifications are in stock with 7–10 working days delivery. Customized products take 15–25 working days. We provide remote technical guidance, on-site installation training and lifelong spare parts supply to ensure long-term stable operation of wellhead safety systems.

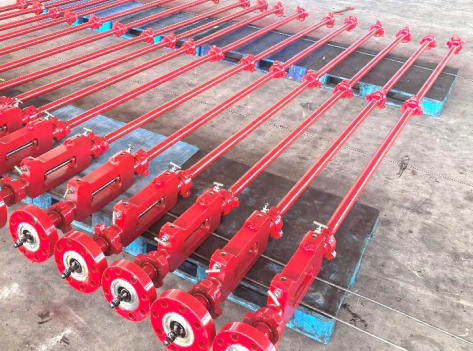

H.BPV AND TWCV.jpg
