Piston pneumaticsafety valve

    Piston pneumaticsafety valve

    The piston pneumatic safety valve is a high-precision pilot-operated overpressure protection device specially designed for oil and gas wellheads, offshore platforms, pneumatic control systems and high-pressure pipeline manifolds. Different from traditional spring-type safety valves, it adopts an advanced piston pneumatic driving structure, which realizes sensitive pressure sensing, stable pressure regulation and automatic pressure relief through pneumatic pilot control. This valve serves as the final safety barrier for industrial pressure systems, effectively avoiding equipment damage, pipelin...
  • Share：
    • Contact us Inquiry
  • E-mail：candice@cnsanmon.com

1. Product Description

The piston pneumatic safety valve is a high-precision pilot-operated overpressure protection device specially designed for oil and gas wellheads, offshore platforms, pneumatic control systems and high-pressure pipeline manifolds. Different from traditional spring-type safety valves, it adopts an advanced piston pneumatic driving structure, which realizes sensitive pressure sensing, stable pressure regulation and automatic pressure relief through pneumatic pilot control. This valve serves as the final safety barrier for industrial pressure systems, effectively avoiding equipment damage, pipeline rupture and medium leakage caused by sudden pressure surges and overpressure accidents.
Featuring modulating opening performance instead of instantaneous full opening, the piston pneumatic safety valve can adjust the relief flow according to the actual overpressure degree, maintaining system pressure stability without causing drastic pressure fluctuation. Built with a high-strength piston assembly and wear-resistant sealing pairs, the valve integrates dustproof and anti-blocking structures to adapt to complex oilfield working conditions with impurities, high salinity and corrosive media. Under normal working pressure, the valve remains fully closed with zero leakage; once the system pressure exceeds the preset threshold, the pneumatic pilot mechanism instantly drives the piston to open for pressure relief. When the pressure returns to the safe range, the valve automatically resets and seals tightly, ensuring continuous and stable operation of the entire pneumatic and pressure pipeline system.
Widely applicable to natural gas wellheads, crude oil transmission pipelines, pressure vessels, Cementing Equipment, BOP control systems and offshore platform pneumatic units, this valve supports long-term operation in low-temperature, high-pressure and corrosive environments. With compact structure, easy installation and zero daily maintenance, it has become a standard safety matching component for onshore and offshore oil and gas engineering projects, fully complying with international petroleum industry safety specifications.

2. Technical Specifications

Parameter Item
Technical Data
Product Name
Piston Pneumatic Safety Valve
Working Principle
Pneumatic piston pilot control, modulating pressure relief
Nominal Size
1/2” ~ 3” (DN15-DN80)
Working Pressure Range
2.0MPa ~ 70MPa
Working Temperature
-46℃ ~ +120℃
Pressure Regulation Accuracy
±3% set pressure (higher than conventional valves)
Main Material
Stainless Steel / Alloy Steel, anti-corrosion treatment
Connection Mode
Threaded / Flanged Connection
Applicable Media
Natural Gas, Crude Oil, Compressed Air, Industrial Fluid
Executive Standard
API 526, API 527, ISO 9001, CE Certified
Application Scenarios
Wellhead, Offshore Platform, Pneumatic Control System, Pipeline Manifold

3. Company Profile

Sanmen Machinery Co., Ltd. is a professional manufacturer and global exporter of Oilfield Safety Valves and petroleum mechanical equipment, focusing on R&D, customized design, precision manufacturing and one-stop supporting services for high-pressure safety protection equipment. With nearly 20 years of experience in the petroleum machinery industry, the company focuses on the research and production of safety valves, relief valves, pneumatic control components and wellhead Auxiliary Equipment, serving global onshore and offshore oil and gas development projects.
The company owns standardized intelligent manufacturing workshops and professional high-pressure testing laboratories. All piston pneumatic safety valves undergo strict raw material screening, precision CNC machining, pneumatic calibration, pressure impact testing and tightness inspection. We fully implement API international industry standards and ISO quality management systems to ensure every product features high precision, strong stability and long service life under harsh oilfield working conditions. Different from ordinary industrial valves, our oilfield-grade safety valves are specially optimized for high-pressure impact, medium corrosion and low-temperature environments, meeting the rigorous safety requirements of offshore deepwater projects.
Adopting a direct factory sales model, we provide cost-effective standard products and personalized customized solutions. Our products are exported to more than 30 countries in the Middle East, Southeast Asia, Africa and Latin America. We have a professional multilingual technical team to provide parameter selection, structural customization, installation guidance and full-cycle after-sales maintenance services, building long-term stable cooperative relations with global oilfield operators and engineering contractors.


Frequently Asked Questions (FAQ)

Q1: What are the advantages of piston pneumatic safety valves over ordinary spring safety valves?
A1: Traditional spring safety valves are prone to pressure deviation and fatigue failure under long-term high-pressure operation. Our piston pneumatic safety valve adopts pneumatic piston pilot control, featuring higher pressure regulation accuracy, more sensitive response and better pressure stability. It supports modulating pressure relief to avoid system pressure shock, and is more adaptable to low temperature and corrosive oilfield environments with lower failure rate and longer service life.
Q2: Can the set pressure and size be customized?
A2: Yes. We support full personalized customization. According to customers’ actual working pressure, pipeline size, medium characteristics and operating temperature, we can adjust valve set pressure, caliber specification, sealing material and connection mode to match different wellhead and pipeline system requirements.
Q3: What certifications and test reports can you provide?
A3: All products comply with API 526 and API 527 international petroleum standards and pass CE and ISO 9001 quality certification. We can provide official factory test reports, pressure performance test certificates, material inspection documents and complete export certification files to support project acceptance and customs clearance.
Q4: Is the valve suitable for offshore platform harsh working conditions?
A4: Absolutely. The valve body adopts anti-corrosion alloy material, and the internal piston and sealing components are optimized for salt fog corrosion and wave vibration. It features waterproof, dustproof and anti-freezing performance, fully adapting to high-salinity, low-temperature and high-humidity offshore platform working environments.
Q5: What is your delivery cycle and after-sales policy?
A5: Standard models are in stock and can be delivered within 7–10 working days. Customized models take 15–25 working days. We provide global remote technical guidance, on-site installation training and lifelong after-sales maintenance and spare parts supply services to ensure stable operation of customer equipment.

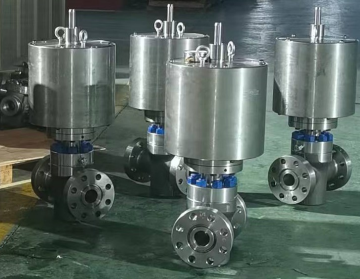

Piston pneumatic safety valve.png
